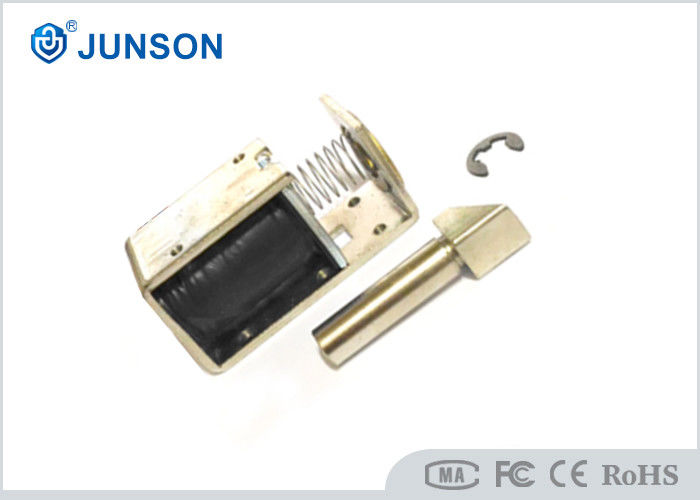

Metal Case Electric Cabinet Lock Fine Copper Coil 0.5A For Solenoid Lock Door
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/FCC |
| Model Number: | JS-303 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | USD3.18-5.00/cps |
| Packaging Details: | 990 cartons per 20" container |
| Delivery Time: | 3 orking days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 3,000pcs per month |
|
Detail Information |
|||
| Product Name: | Electric Cabinet Lock | Working Type: | Unlock When Power On |
|---|---|---|---|
| Voltage: | 24V | Current: | 0.5A |
| Temerature Raise: | 65K Max. | Materials: | Fine Copper Coil / Metal Case |
| Working Life: | 500,000 Times | Working Time: | Less 1S |
| Weight:: | 0.16kg/pcs | Packing: | 100cps/carton |
| Highlight: | magnetic cabinet locks,digital cabinet locks |
||
Product Description
2019 Best selling Electric Cabinet Lock for Electronic Solenoid Lock Door
Model: JS-303
Parameter List
| Lock Dimension | 55L*41W*22H (mm) |
| Lockpin length | 10mm |
| Stroke: | 10mm |
| Working Type | unlock when power on |
| Direction of lockpin | Up towards |
| Materials: | Metal case / fine copper coils |
| Voltage | 24V DC |
| Working Current: | 0.5A |
| Consuming power | 1.2W |
| Open time | 1S |
| Continue power on | ≦15S |
| Operation temperature | -40℃ -50℃ |
| Operation Humidity | 0-80℃ |
| Weight: | 0.1kg/pcs |
| Available | All kind of Cabinet |
| Packing: | 100pcs/ carton |
| Carton size: | 32L*22W*16H (cm) |
Dimenssion :
Whole Metal instuacture
using A grade steels as case materials,
Electric cabinet lock designed power on momently. with low power consumption design
Fine Copper coils
Voltage in 12V DC, 6V DC or 24V DC, as optional
Long connect cables with terminal, easy to connect with control system.
Main Feature:
-
High-strength steel, and fine copper coils, durable
-
With small with connector, and 30mm wires, easy to connect to the control board.
-
Small Volume, light weight, Less power consumption, Easy installation
-
Standby power-on time does not exceed 15 seconds to prevent coil burnout
-
The direction of spring bolt can be changed, with lef
-
Install easily in the cabinet door.
-
Workable with access control, remote control or special access control power.
Easy to change the direction of lockpin
take out the black metal chip under the spring. the lockpin can be take out and turn around to any directly you like.
|
|
