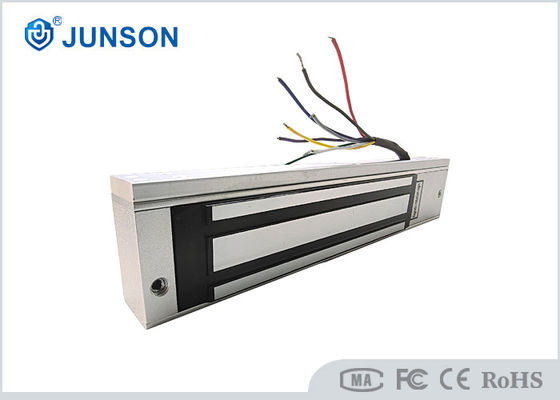

Double Sensors 600lbs Electromagnetic Lock 12VDC Single Door
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/SGS/ROHS/FCC |
| Model Number: | JS-280SLD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 1-7 working days once the payment received |
| Payment Terms: | T/T, PayPal or Western Union in advance |
| Supply Ability: | 30,000pcs per month |
|
Detail Information |
|||
| Holding Force: | 280kg | Signal Out: | NO,/NC/ Com |
|---|---|---|---|
| Application: | Wooden Door | Feature: | When Power On Lock |
| Power Supply: | 12VDC | Standard Packing: | 10pcs/carton |
| Lock Size: | 250L * 42W * 25H (mm) | Product Name: | Electromagnetic Lock |
| Highlight: | Double Sensors Electromagnetic Lock,600lbs Electromagnetic Lock,12VDC Single Door Magnetic Lock |
||
Product Description
Fail safe 12V or 24V 600 lbs Electromagnetic lcok With doblue sensor
Model:JS-280SLD
JS-280SLD single door magnetic lock is for glass door, wooden door, fireproof door, sliding door and metal door. Special anti-residual magnetism designed makes the access control automation safer and electric lock more durable.
Specifications of 600 lbs Electromagnetic lcok:
| Lock Dimension: | 250L * 42W * 25H (mm) |
| Armature plate dimension: | 185L * 38W *12 H (mm) |
| Holding force | 280Kg (600lbs) |
| Voltage : | 12 / 24V DC |
| Current : | 12V / 500mA, 24V / 250mA |
| Available bracket | JS-280U, JS-280ZL, JS-280L |
| Signal output: | Dry Contact, NO, NC, Com |
| Surface Temp: | ≦20℃ |
| Operating Temp: | -10℃ - 55℃ |
| Suitable Humidity: | 0-90% (non-condensing) |
| Finishing for lock and Armature | Zinc |
| Weight: | 2kg |
| Standard Packing: | 10pcs |
| Cartons size: | 35L * 30W * 16H (cm) |
Features of 600 lbs Electromagnetic lcok:
Descriptions of 600 lbs Electromagnetic lcok:
1. Fail-safe, power locked
2. Collinear load test 280kg, 600 pounds
3. Dual voltage 12 VDC or 24 VDC(optional)
4. Standard voltage on completion is 12VDC
5. MOV provides reverse current protection
6. Suitable for wooden doors, glass doors, metal doors, fire doors, etc
7. Indicator light indicates locked status, lock status sensor (NO/NC/COM)
8. High strength material (Kasolite steel), anodized alumina housing
9. No mechanical bolt design
10. Increased gripping force, double insulated sleeve
The design of the electromagnetic lock (electromagnetic lock) is the same as that of the electromagnet.
Using electromagnetic principles, when an electric current passes through a sheet of silicon steel, the magnetic lock creates a strong suction force, which helps to hold the iron plate firmly.
Even a small electric current will produce a huge magnetic field, which can effectively control the door.
Junson electromagnetic lock using the world's leading production equipment and packaging technology, not only make our lock surface oxidation resistance to reach the international leading level, but also help to increase the grip (20% higher than other manufacturers).
Now our locks have been sold to more than 60 countries and regions all over the world, and are widely used in important places such as airports, subways, banks, prisons, intelligent buildings, intelligent communities and so on, and become a convenient, fast, intelligent tool for global users, and gain a good reputation from customers.
Advantage of magnetic lock
FAQ
Q:How do I pay for my purchase?
A: we accept the following payment methods: cridet card; moneybooker;T/T;western union.
Q:How much does it cost to ship to my country?
A:Please tell us your receive goods address, we will check the shipping cost for your reference
Q:Is there any tracking Number for my item?
A: Yes, we ship every order with their Tracking Number, and you can view the shipment staus on the corresponding website.
Q:Does this product come with retail package?
A: We have declared the packing detail on the description of each product, please check it, thank you!
Q:I am a reseller,I would like to buy many pieces of your item, what's the wholesale price?
A: Hi,thanks for your inquiry, if you would like to buy large quantity, please send email to us, we will give you the best price, thanks!
Quality Guarantee:
Warranty Service will be honored if the damage is not caused by human, JUNSON Provides 3 years warranty
for relative products. On the contrary, JUNSON will charge extra if repair.
More information, please browse our service center.
We offer many Electronic lock, like: Magnetic door lock, Electric lock, Elctric door strike, Electric bolt,
Electronic lock. Door lock. Access control.
