DC12V Standalone Access Control System With Zinc Alloy Housing
Product Details:
| Place of Origin: | China |
| Brand Name: | Junson |
| Certification: | CE/FCC |
| Model Number: | JS-K6901 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 5000 pcs per month |
|
Detail Information |
|||
| Dimension: | 130L * 46W *16H Mm | Waterproof Rate: | IP66 |
|---|---|---|---|
| Materials: | Zinc Alloy Housing | Voltage: | DC12V ± 25% |
| Frequency Distance: | 3-8cm | Wiegand Output: | Build In Wg26/34 |
| Card Frequency: | 125Khz Or 13.5Mhz / 125Khz+13.5Mhz | Door Relay Time: | 1-99S |
| Gross Weigth: | 0.30kg | Net Weight: | 0.23kg |
| Highlight: | DC12V Standalone Access Control System,125Khz RFID Card Access Control,13.5Mhz Standalone Access Control System |
||
Product Description
DC12V Standalone Access Control System With Zinc Alloy Housing
Standalone RFID Access Control With Slim Metal Case Slim metal case access control
Model: JS-K6901
Standalone RFID Access Control Slim type metal case is a type of RFID standalone access control system that is designed to be compact and durable. The slim type metal case design makes this type of RFID standalone access control system ideal for usage scenario where space is limited. The metal case also provides added durability and protection against tampering or vandalism.
Parameter List:
| Dimension: | 130L * 46W *16H mm |
| Waterproof rate: | IP66 |
| Materials: | Zinc Alloy Housing |
| Voltage: | 12V DC ± 25% |
| Frequency distance | 3-8cm |
| Wiegand output | Build in Wg26/34 |
| Card type: | EM or Mifare or EM+Mifare |
| Card Frequency | 125Khz or 13.5Mhz or 125Khz+13.5Mhz |
| Operating Temp | -40℃ - 60℃ |
| Operating Humidity | 10-95% |
| Door relay time | 1-99S |
| Gross Weigth: | 0.30kg |
Features:
1. IP66 and Zinc Alloy material access control
2. Anti-vanda , waterproof & back-lit metal key buttons, slim , elegant and rugged design , anti-explosion
3. Support EM or Mifare or EM & Mifare card
4. Mifare Wiegand 26-44bits, 56bits, 58bits input output, EM wiegand 26 bits
5. Support wiegand input and output , can work with reader or work with control board as a reader
6. With back highlight
7. Capacity: 3000 Cards
8. Open model: Card , Pins, or card+Pins
Wires Definition :
| NO. | Function | Colour | Notes |
| 1 | NC | Orange | Relay NC |
| 2 | COM | Purple | Relay COM |
| 3 | NO | Blue | Relay NO |
| 4 | GND | Black | Negative pole |
| 5 | DC+ | Red | Positive Pole |
| 6 | OPEN | Yellow | Exit Button |
| 7 | D_IN | Brown | Door Contact |
| 8 | ALARM- | Grey | Connect to external alarm negative pole |
| 9 | D0 | Green | Wiegand Output/Input Data 0 |
| 10 | D1 | White | Wiegand Output/Input Date 1 |
Connection Diagrame :

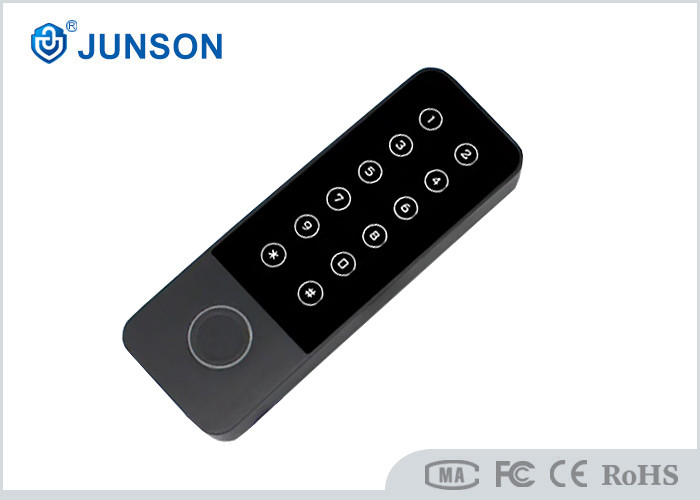

Apperance&Images:
Why choose Junon Security:
Junson Security obtained more than 10 years experience in Door access control systems and solutions, we did many project in local market.
If you need any support, just email or call us back at anytime. We will send relevant according to your request.
FAQ:
Q1. What is your MOQ? Can I mix different styles to a start order?
A. Please tell us what products you need first. We can provide any stock as samples for you to check the quality first. If the item is in stock, MOQ is 1pc.
Q2. Can l visit your factory?
A. By all means, we warmly welcome your arrival. Before you take off from your country, please let us know. We will show you the way and arrange time to pick you up if possible.
Q3. Do you offer OEM service and can you produce as our drawings?
A. Yes. We offer OEM service. We accept custom design and we have a professional design team who can design products based on your requirements. And we can develop new products according to your samples or drawing.
