Single Door Magnetic Lock With LED Monitor For 180kg / 300Lbs
Product Details:
| Place of Origin: | China |
| Brand Name: | Junson |
| Certification: | CE/FCC |
| Model Number: | JS-180SL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 5000 pcs per month |
|
Detail Information |
|||
| Lock Size: | 200Lx41.6Wx22.5H(mm) | Armature Plate: | 130Lx33Wx11H(mm) |
|---|---|---|---|
| Holding Force: | 180kg(300Lbs) | Voltage: | 12 / 24VDC |
| Materials: | Fine Copper Coil + Aluminum Housing | LED Indicate: | Lock To Green, Open To Red |
| Lock Sensor Feedback: | No, Nc, COM | Available Bracket: | JS-18U, JS-18L. JS-18ZL |
| Weight: | 1.2kg | Certification: | CE, ROHS, FCC, MA |
| Highlight: | 180kg magnetic lock,300lbs magnetic lock |
||
Product Description

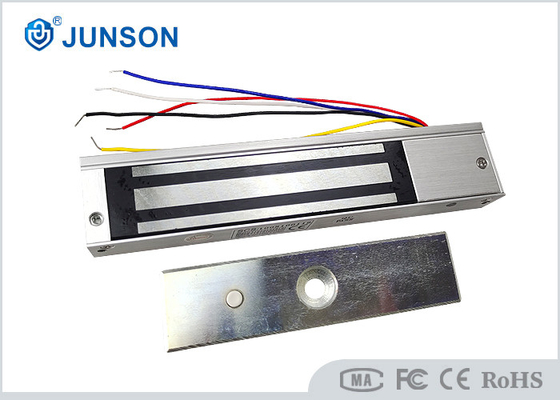

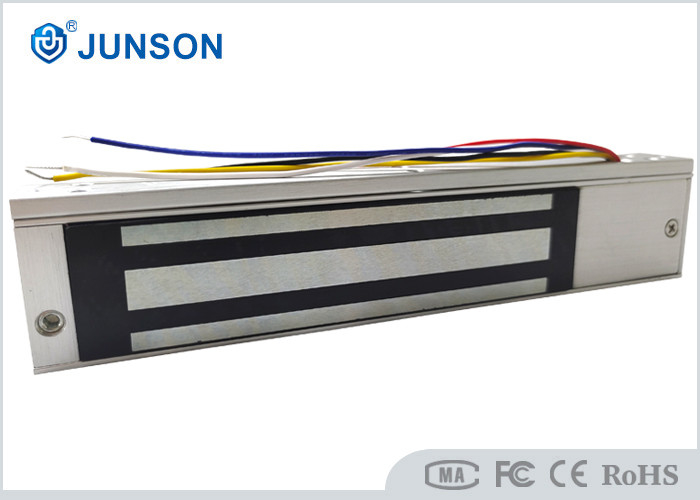

Single Door Magnetic Lock with LED / Monitor for 180kg / 300Lbs
180kg Electric Magnetic Lock With Led
Model: JS-180SL
The JS-180SL is an electric magnetic lock that is designed for Wooden door, Glass door, Metal door, Fireproof door. It is a high-security lock that is typically used in commercial or industrial applications where access control is critical. The lock is operated by a remote control or other access control device, such as a keypad or card reader.
It can be easily integrated with other access control system. Additionally, they are highly durable and require minimal maintenance, making them a popular choice for high-traffic areas.
Specification:
| Lock Size: | 200Lx41.6Wx22.5H(mm) |
| Armature plate: | 130Lx33Wx11H(mm) |
| Holding Force: | 180kg(300Lbs) |
| Voltage: | 12 / 24VDC |
| Materials: | Fine copper coil + aluminum housing |
| LED indicate: | lock to green, open to red |
| Have lock sensor feedback: | No, Nc, COM |
| Current Draw: | 12V/380mA 24V/190mA |
| Available Bracket: | JS-18U, JS-18L. JS-18ZL |
| Suitable for: | Wooden door, Glass door, Metal door, Fireproof door |
| Surface Temp: | ≤+20 |
| Operating Temp: | -10~+55°C (14-131F) |
| Suitable Humidity: | 0~90%(non-condensing) |
| Finishes for Shell: | Anodized aluminum, drawbench finishing |
| Finishes for Magnetic: | Zinc |
| Finishes for Armature: | Zinc |
| Weight: | 1.2kg, |
| Standard Packing: | 24PCS |
| Standard carton dimension: | 435Lx200Wx260H(mm) |
| Certification: | CE, ROHS, FCC, MA |
Lock Size : MM
Armature Plate Size:

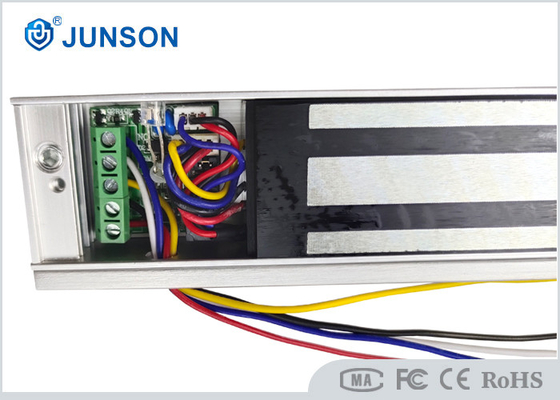

PCB Structure and Electrical Wiring
