Customized Voltage Small Electric Cabinet Lock Without Pole 73L*56W*13H mm 12V / 24V DC
Product Details:
| Place of Origin: | China |
| Brand Name: | Junson |
| Certification: | CE/FCC |
| Model Number: | JS-3051 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 2-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 5000 pcs per month |
|
Detail Information |
|||
| Lock Dimension: | 73L*56W*13H (mm) | Hooker Length: | 26mm, 29mm Optional Hooker |
|---|---|---|---|
| Working Type: | Fail Secure / Locked When Power Off | Materials: | Steel Housing / Fine Copper Coils |
| Voltage: | 12V / 24V DC (customized) | Working Curren: | 2A/1A |
| Weight: | 0.17kg/pcs | Packing: | 100pcs/carton |
| Highlight: | Customized Voltage Electric Cabinet Lock,Small Electric Cabinet Lock Without Pole |
||
Product Description

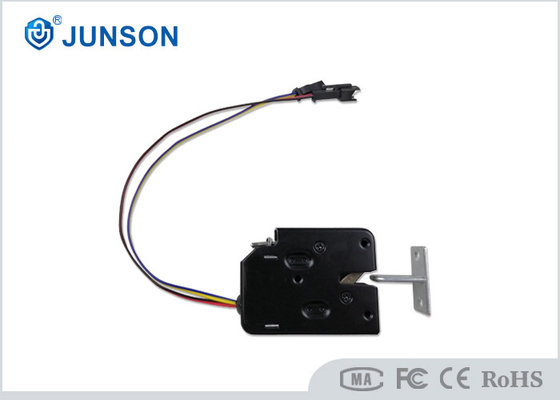

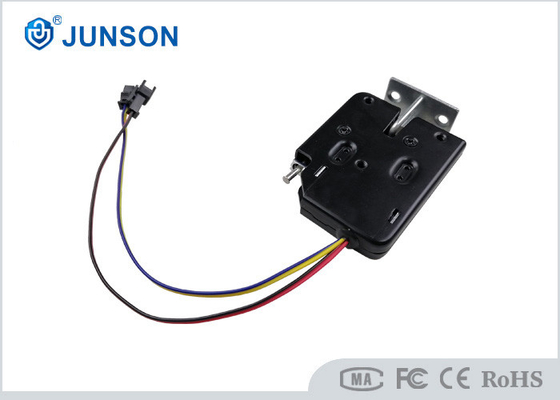

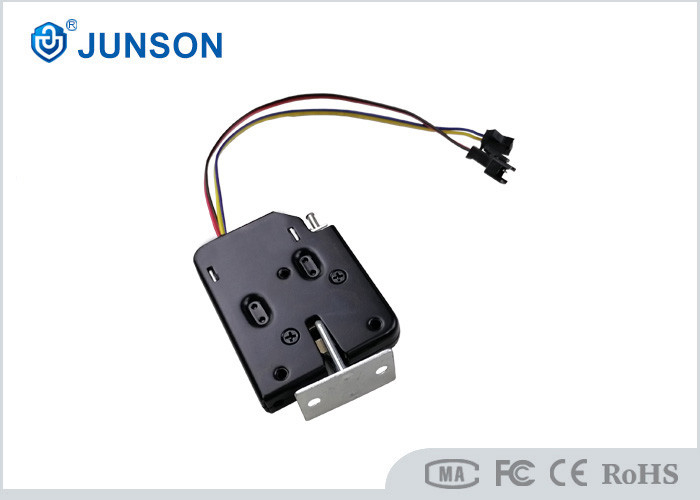

New Improved Small Electric Cabinet lock (without pole)
Model: JS-3051
The new improved electric cabinet lock can provide precise feedback(feedback after locked). It can always feedback the right signal.The dimensions of it are same as the old locks. You can just install it on the original installation hole for easy upgrade.This greatly simplifies the upgrade process and reduces the total cost.
Parameter List:
| Lock Dimension | 73L*56W*13H (mm) |
| Hooker length | 26mm, 29mm optional hooker |
| Working Type | Fail secure / locked when power off |
| Materials: | Steel housing / fine copper coils |
| Voltage | 12V / 24V DC (customized ) |
| Working Current: | 2A / 1A |
| Consuming power | 2.4W |
| Open time | 1S |
| Continue power on | ≦10S |
| Operation temperature | -40℃ -50℃ |
| Operation Humidity | 0-80℃ |
| Available | All kind of Cabinet |
| Weight: | 0.17kg/pcs |
| Packing: | 100pcs/ carton |
| Carton size: | 35L*35W*15H (cm) |
Main Feature:
1. High-strength steel, and fine copper coils, durable
2. Small Volume, light weight, Less power consumption, Easy installation
3. Available for any kind of cabinet, file box.
4. Continues electrify no longer than 10S, to prevent the burn the coil
5. With small with connector, and 20mm wires, easy to connect to the control board.
6. Workable with access control, remote control or special access control power.
7. Metal housing, easy to install in the cabinet door.
8. With Emergency open switch hidden, can open by hand in emergency condition
9. Safety, bolt’s holding force at 150kg
10. Flick the door auto. With adjustment spring, can open the 0.5-4kg door automatic.
Lock Dimension:
Hooks model we can options:
