140LBS Mini Magnetic Lock for Mail box , CE ROHS certification(JS-70S)
Product Details:
| Place of Origin: | China |
| Brand Name: | JUNSON |
| Certification: | CE/ROHS/FCC/SGS |
| Model Number: | JS-70S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Packed in carton |
| Delivery Time: | 1-7 working days after received your payment |
| Payment Terms: | T/T, paypal or western Union in advance |
| Supply Ability: | 30,000pcs per month |
|
Detail Information |
|||
| Product Name: | Magnetic Lock | Armature Plate Finish: | Steel With Zinc Finishing |
|---|---|---|---|
| Current Draw: | 12V/100mA 24V/200mA | Finishes For Magnetic:: | Zinc |
| Application: | Cabinet Door | Holding Force: | 140lbs / 70kg |
| Feature: | Fail Safe | Power Supply: | 12V Or 24V |
| Highlight: | magnetic security door locks,fail secure electromagnetic lock |
||
Product Description

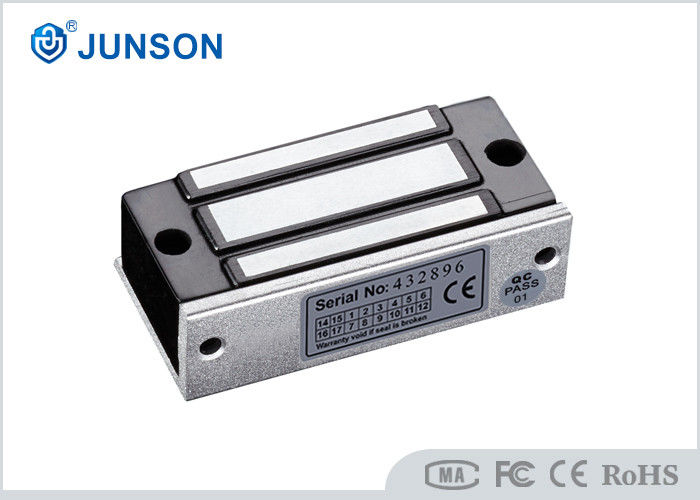

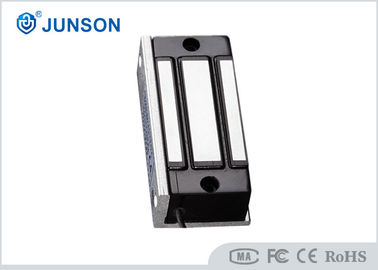

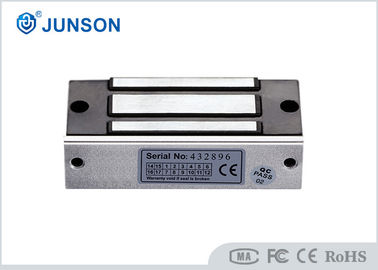

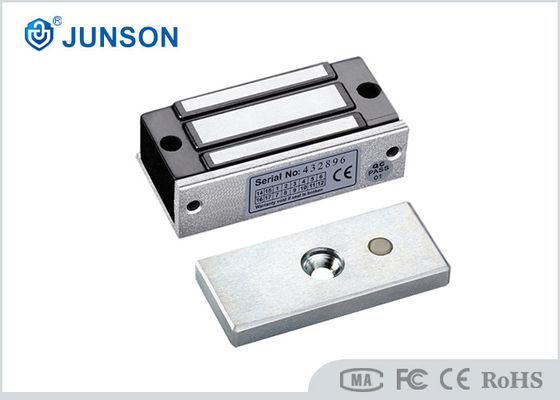

140LBS Mini Magnetic Lock for Mail box , CE ROHS certification
Model:JS-70S
- No mechanical damage and no residual magnetism, strong tension, less electricity and long lifespan
- MA certified products of China / CE certification of EU.
- Built-in reverse current protection device (MOV).
- Shell is made of high-strength aluminum alloy, Anodized..
The specifications of 140LBS Mini Magnetic Lock:
|
Lock Dimension: |
90Lx39Wx24H(mm) |
|
Armature plate dimension: |
70Lx33Wx9.4H(mm) |
|
Holding force |
70Kg (140lbs) |
|
Voltage : |
12 / 24V DC(customize) |
|
Current : |
12V/100mA 24V/200mA |
|
Available bracket |
JS-60U, JS-60ZL, |
|
Signal output: |
NAL |
|
Surface Temp: |
≦20℃ |
|
Operating Temp: |
-10℃ - 55℃ |
|
Suitable Humidity: |
0-90% (non-condensing) |
|
Finishing for lock and Armature |
Zinc |
|
Weight: |
0.7kg |
|
Standard Packing: |
60pcs |
|
Cartons size: |
54L * 30W * 20H (cm) |
The description of 140LBS Mini Magnetic Lock:
1. Fail safe, Power to lock
2. Collinear Load Test 60kg, 100pounds
3. Dual Voltage 12 or 24 VDC(optional)
4. The Standard Voltage is 12VDC when Finished
5. MOV Provides Reverse Current Protection
6. Suitable For Wooden Door, Glass Door, Metal Door, Fireproof Door
7. High Strength Material(kasolite steel), Anodized Aluminum Housing
8. Design with no Mechanical Bolt
9. Increase the holding Force, Dual Insulative Hosing
Series for 280kg EM locks
| Model | +, - power | Lock sensor/LED | Timer | Door sensor | Install hole for lock plate | Single or dual door |
| JS-280 | yes | NO | NO | NO | Dual hole | Single door |
| JS-280S | yes | yes | NO | NO | Dual hole | Single door |
| JS-280TS | yes | yes | 0/3/6/9S | NO | Dual hole | Single door |
| JS-280SG | yes | yes | NO | NO | Single hole | Single door |
| JS-280SF | yes | yes | 0-15S | NO | Dual hole /with buzzer | Single door |
| JS-280SLD | yes | yes | No | yes | Dual hole | Single door |
| JS-280D | yes | NO | NO | NO | Dual hole | double door |
| JS-280DS | yes | yes | NO | NO | Dual hole | double door |
| JS-280DTS | yes | yes | 0/3//6/9S | NO | Dual hole | double door |
